Defensive Bastion Sand Retaining Wall Defensive Barrier Fence

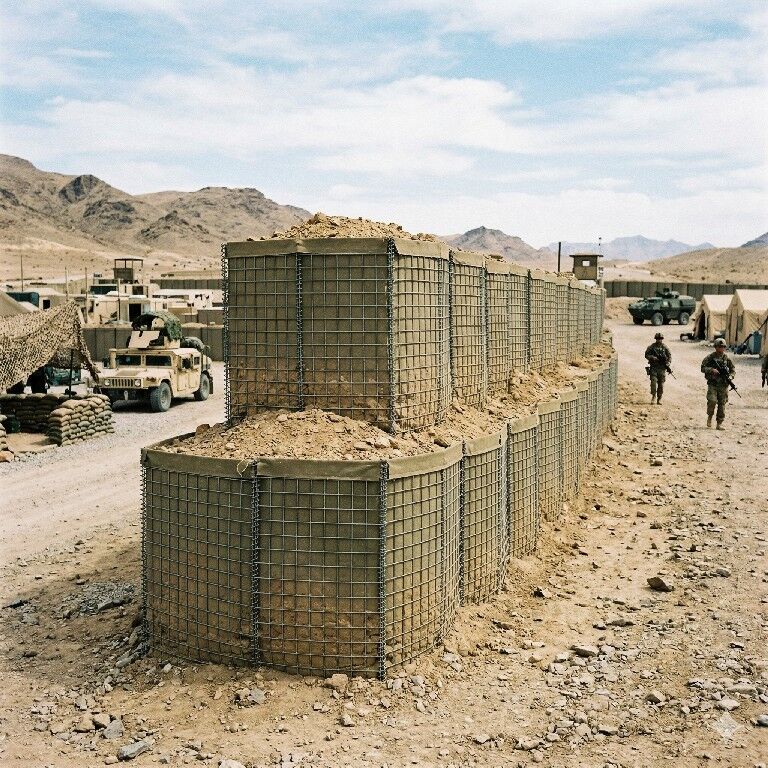

Defensive barriers, specifically the collapsible wire mesh containers lined with geotextile fabric, are modern protective barriers widely used in military and civil engineering. They consist of collapsible wire mesh containers with geotextile lining. When deployed, the containers are unfolded, placed in position, and filled with locally available materials such as sand, soil, or gravel using machinery. Once filled, they form robust, modular walls that can effectively absorb blast pressure and stop projectiles. These defensive barriers are lightweight for transport, quick to install, and highly adaptable. They are commonly used for base perimeter protection, flood control, blast mitigation, and erosion prevention. Their efficiency and reusability have made them a standard solution for both combat zones and disaster relief operations.
The Standard Technical Specifications
| Military Barrier Used Shooting Range Barrier |
| Model |
Height |
Width |
Length |
| mil-1 |
54"(1.37M) |
42"(1.06M) |
32'9"(10M) |
| mil-2 |
24"(0.61M) |
24"(0.61M) |
4'(1.22M) |
| mil-3 |
39"(1.00M) |
39"(1.00M) |
32'9"(10M) |
| mil-4 |
39"(1.00M) |
60"(1.52M) |
32'9"(10M) |
| mil-5 |
24"(0.61M) |
24"(0.61M) |
10'(3.05M) |
| mil-6 |
66"(1.68M_ |
24"(0.61M) |
10'(3.05M) |
| mil-7 |
87"(2.21M) |
84"(2.13M) |
91'(27.74M) |
| mil-8 |
54"(1.37M) |
48"(1.22M) |
32'9"(10M) |
| mil-9 |
39"(1.00M) |
30"(0.76M) |
30'(9.14M) |
| mil-10 |
87"(2.21M) |
60"(1.52M) |
100'(32.50M) |
| mil-11 |
48"(1.22M) |
12"(0.30M) |
4'(1.22M) |
| mil-12 |
84"(2.13M) |
42"(1.06M) |
108'(33M) |
| mil-19 |
108"(2.74M) |
42"(1.06M) |
10'5"(3.18M) |
1.Environmental Barriers, Flood Barriers, a reliable, easy-to-deploy, and robust solution for emergency flood
protection or long-term wetland restoration
2.Defensive Barriers: Protecting both and civilian personnel in dangerous environments demands defensive
solutions that are secure, reliable, and readily available.
3.Protective Barriers: Protect your workforce, Create a secure refuge for your employees by protecting up to
eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer- facing perimeter security where a more benign appearance is required.
The Application for Welded Gabion Barrier Military Barrier
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Shuxin products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Military Gabion Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Military Defensive Wall is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
